BruceMcClane devlog 1 - wfc and deadend rooms

18 Jun 2020

My first try on wave function collapse

Heavy based on mxgmn/WaveFunctionCollapse

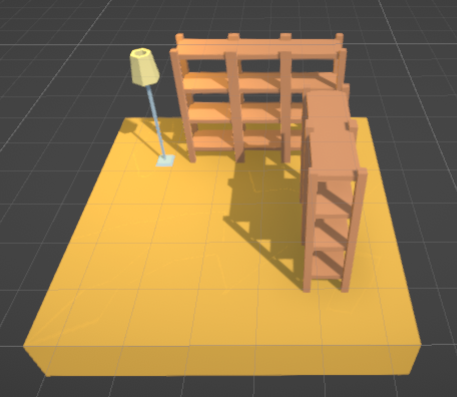

I have designed a training room for the wfc algorithm:

The result is nice but still needs a lot of fine-tuning and content (furniture) so I postponed WFC for now :)

Deadend rooms

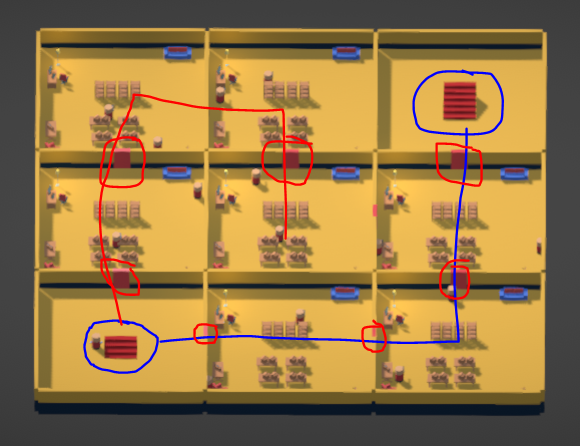

First I connected all the rooms that are on the target path. This created rooms that the player can never reach.

My solution goes through all the rooms and sees if a room without a door is adjacent to a room with a door. If so, I connect these rooms. If there are several possibilities, a random room is picked. I do this until every room has a door.

foreach (var room in withoutDoorRooms)
{
    var roomPossibilities = new List<Parts.Room>();

    // neighbor rooms
    foreach (var delta in deltas)
    {
        var checkRoom = rooms[checkPosition.x, checkPosition.y];
        if (checkRoom.HasDoor())
        {
            roomPossibilities.Add(checkRoom);
        }
    }

    var randomIndex = Random.Range(0, roomPossibilities.Count);
    var currentRoom = roomPossibilities[randomIndex];

    SetDoors(room, currentRoom);
}
